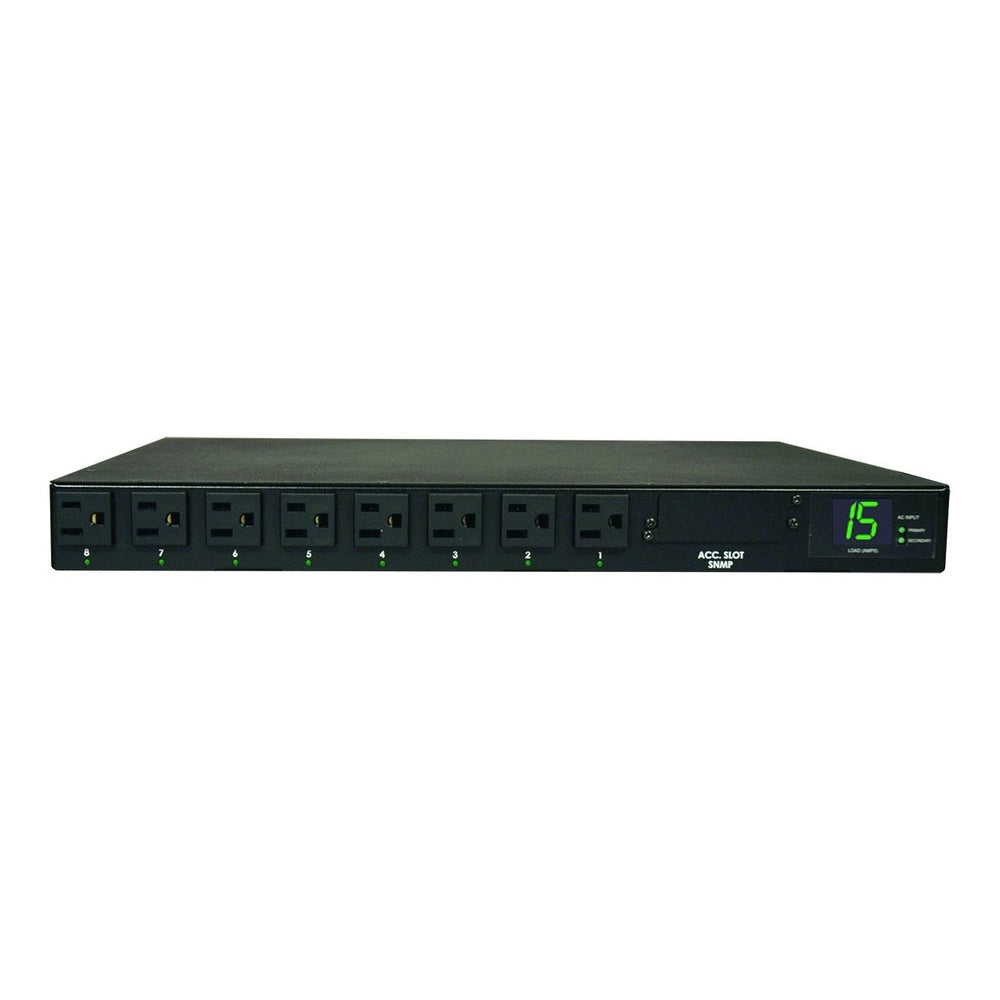

Tripp Lite PDUMH15AT 1.4kW 120V 1U Single-Phase 8x5-15R Transfer Switch PDU
Power Distribution Units
$277.72 $242.42
SKU: MPC-154005351-01

Tripp Lite's 120V 15A metered PDU system with Automatic Transfer Switching (ATS) is an 8 outlet PDU with a digital display to indicate total PDU power consumption in amps. Outlets are sequentially turned on at...

Availability: 3 left in stock
Quantity

Guaranteed safe checkout

amazon paymentsapple paybitcoingoogle paypaypalvisa

Tripp Lite's 120V 15A metered PDU system with Automatic Transfer Switching (ATS) is an 8 outlet PDU with a digital display to indicate total PDU power consumption in amps. Outlets are sequentially turned on at 250 milliscond intervals when the PDU is first energized from an unpowered state to prevent inrush-related equipment interaction on startup. Supports 1U rackmount installation in a 2 or 4 post rack. Included are 8 NEMA 5-15R outlets, and two 12 ft. 5-15P input power cord. Optional integrated ATS is available for use when two separately derived input power sources are available. The attached power cord serves as the primary AC input cable, while the included detachable power cord serves as the optional-use secondary AC input connection. The PDU system passes the primary input power through to connected equipment whenever line voltage and frequency levels are normal. If the primary input source goes outside of these tolerances or fails altogether, the ATS will automatically switch all PDU output to the secondary line sourced input power (when available) to maintain continuous operation of connected loads without reboots or service interruptions. Once the primary power source is restored, the PDU will automatically switch back to primary sourced input power. The dual input cabling can be configured for UPS maintenance bypass of standard UPS s


  • Power Rating: 1.80 kVA
  • Input Receptacles: 2 x NEMA 5-15P
  • Output Receptacles: 8 x NEMA 5-15R
  • Input Voltage: 120 V AC
  • Output Voltage: 120 V AC
  • Current: 15 A Input Current
  • Current: 15 A Output Current
  • Form Factor: 1U Rack-mountable
  • Power Cord/Cable: 12 ft
  • Height: 1.8 and quot
  • Width: 17.5 and quot
  • Depth: 14.5 and quot
  • Weight (Approximate): 11.00 lb
Product may differ from image shown
